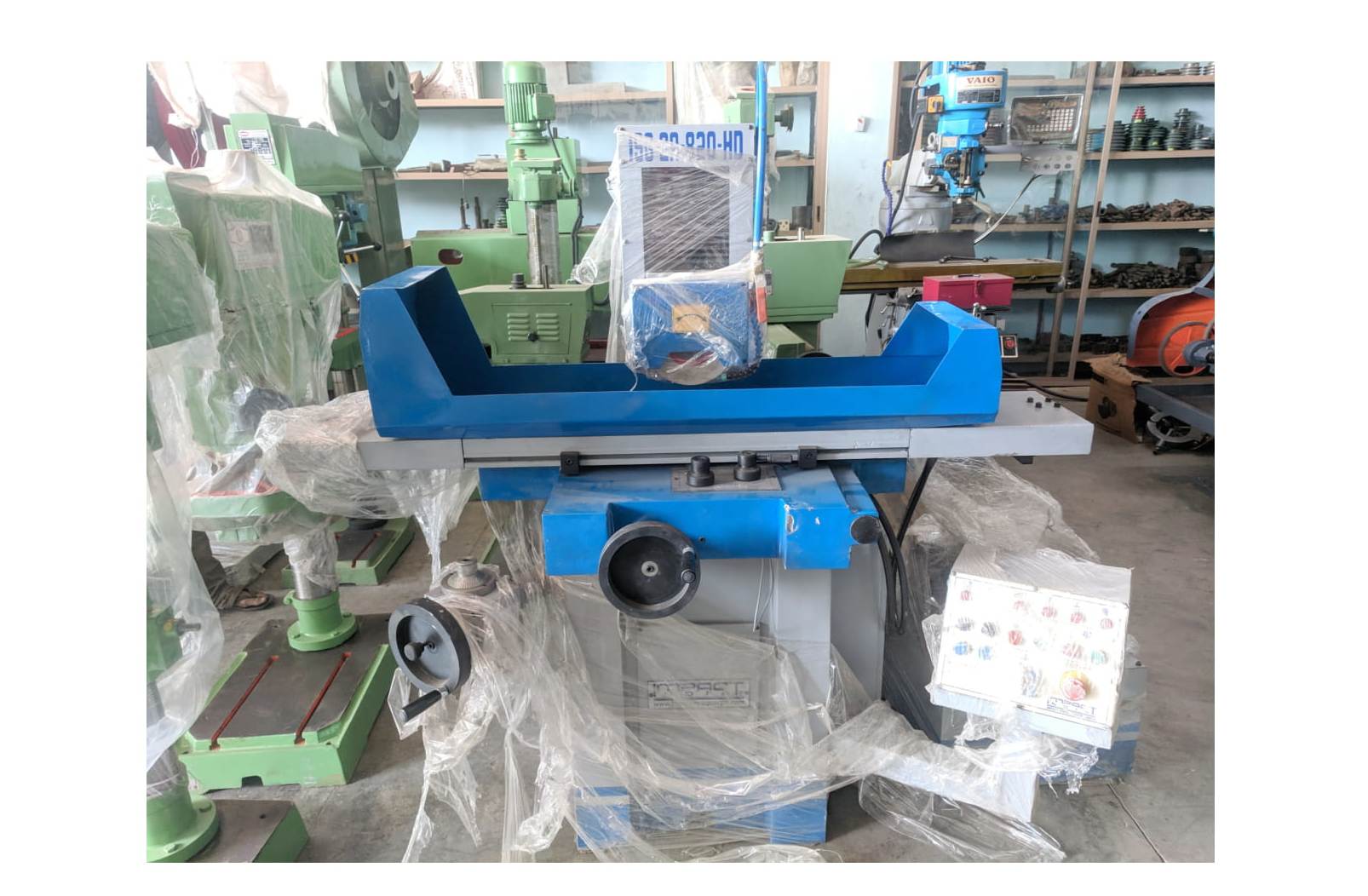

Hydraulic Surface Grinder

 Hydraulic Surface Grinder :

TECHNICALSPECIFICATION:


                                        MODEL



DESCRIPTIONS

INTR-618

A, 1A, 2A, 3A ED/HD

INTR-820

A, 1A, 2A, 3A ED/HD

INTR-1024

A, 1A, 2A, 3A ED/HD

INTR-1224

A, 1A, 2A, 3A ED/HD

Table Size



150x500 mm(6”x18”)

200 x 500 mm (8”x20”)

250x600 mm (10”x24”)

300x600 mm (12”x24”)

Max. Grinding Length

Longitudinal

475 mm (19”)

525 mm (21”)

625 mm (25”)

625 mm (25”)

Max. Grinding Width

Crosswise

160 mm (6 ¼”)

212 mm (81/2”)

262 mm (101/2”)

312 mm (12½”)

Max. Distance from Table Surface to Spindle centreline



250 mm (10”)

400 mm (16”)

450 mm (18”)

Standard magnetic chuck size



160x350 mm (6”x14”)

200 x 450 mm (8”x18”)

250 x 500mm (10” x 20”)

300 x 600 mm (12” x 24”)

Longitudinal Movement of Table

Hand Wheel Per rev.

100 mm (4”)

Table speed Elect.  auto feed









Max. Travel elect. Auto feed

475 mm (19”)

525 mm (21”)

625 mm (25”)

775 mm (31”)

Max. Travel hydraulic

Table speed infinitely variable Hydraulic

50HZ, 5-25 m/min, 60HZ,5-28 m/min

Cross Transverse Travel

Max. Auto transverse travel

160mm (6 ¼”)

212 mm (8½”)

262 mm (10½”)

312 mm (12½”)

Handwheel per revolution

5 mm (0.2”)

Handwheel per graduation

0.05 mm (0.0012½”)

Auto transverse increment

1-10 mm (0.04”-0.4”)

Wheel head Vertical

Handwheel per revolution

1 mm (0.05”)

Handwheel per Graduation

0.01

Grinding Spindle Drive

Power rating

1 H.P.

2 H.P.

Speed

50HZ, 2850 RPM.,60HZ,3450 R.P.M

Standard Grinding Wheel

Diameter

178 mm (7”)

203 mm (8”)

Width

12 mm (½”)



Bore

31.78(1½”)

Hydraulic Motor

Power rating

1HP x 6P

2 HP x 6 P

Longitudinal Feed Motor

Power rating

1HP x 6P

1 HP x 6 P

1HP x 6 p

Floor Space

Length x width x total height

Space required

1370x1020x1845mm



(54” x 40” x73”)

2030x1370x1630mm



(80” x 54” x 64”)

2450x1500x1630mm



(96” x 61” x 64”)

2500x1680x2500mm



(98” x 66” x 98”)

Packing Dimensions

L x W x H

1270x920x1820mm

(50”x36”x72”)

1680x1270x1650mm

(66”x50”x65”)

1780x1320x1650mm

(70” x 52” x 65”)

1780x1400x1700mm

(70” x 56” x 67”)



Parameters for Model Selection :

A  : Longitudinal Hand-Feed.

1A : Longitudinal Hydraulic/Electrical Motorized.

2A : Longitudinal Hydraulic / Electrical Motorized and Crossfeed Motorized.

3A : Longitudinal Hydraulic / Electrical Motorized and Crossfeed Motorized

             and Rapid Up/Down Motorized


Standard Accessories :
1.GrindingWheel

2.WheelFlange
3.
LevellingScrews
4.
DiamondDresser Black
5.
FlangePuller
6.
TableGuards
7.
SpindleLocking Spanner
8.
MagneticClamp Bolt

OptionalAccessories :

·        Permanent Magnetic Chuck

·        Electro Magnet Chuck

·        Inclinable Permanent Magnetic Chuck

·        Precision Vice

·        Spindle Set

·        Spare Wheel Flange

·        Digital Read Out

·        Wheel Balancing Stand

·        Coolant and Dust Unit

·        Manual Parallel Dressing Attachment

·        Micro Down Feed Device

             ·          Rapid Elevation Device
