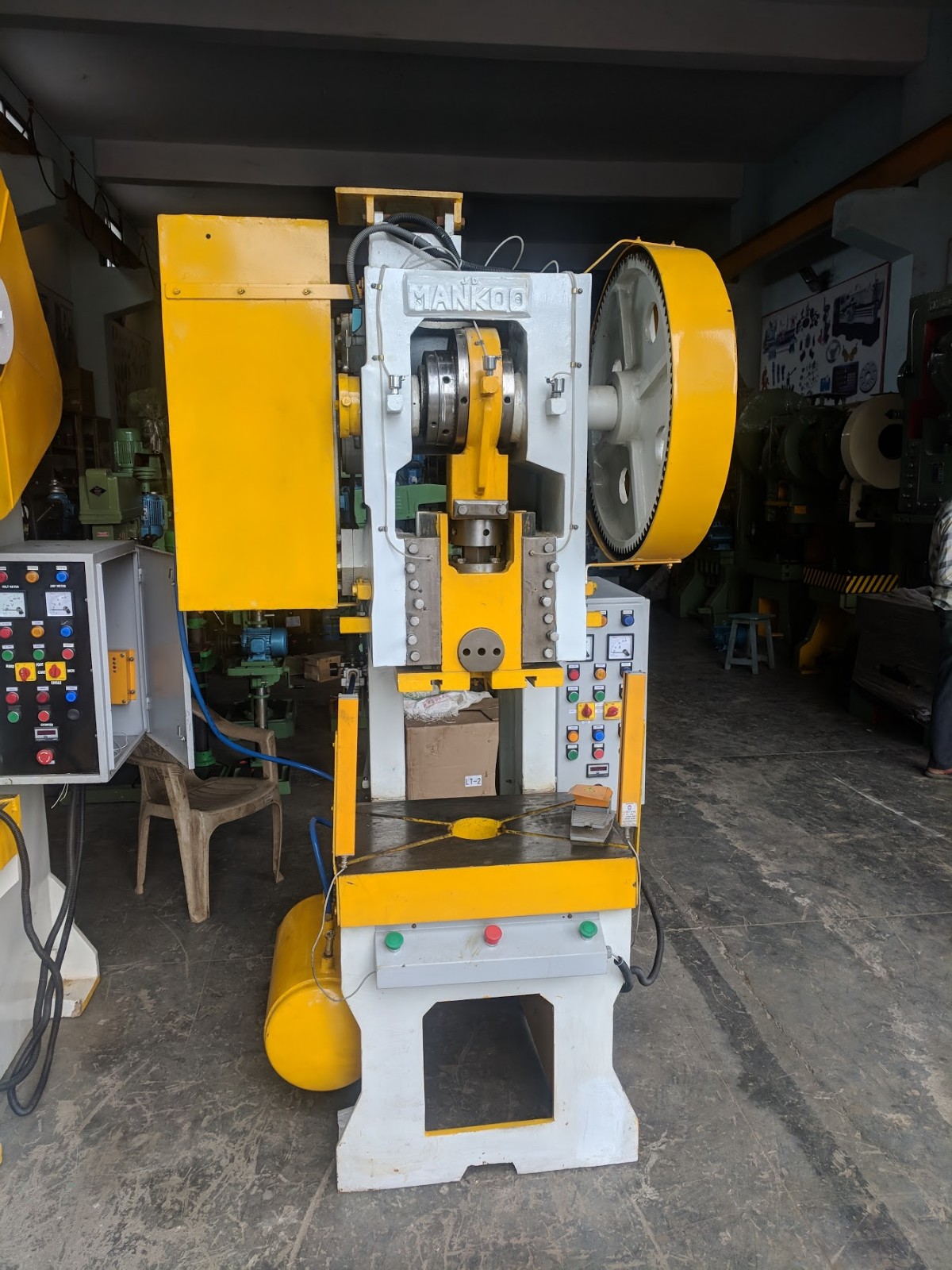

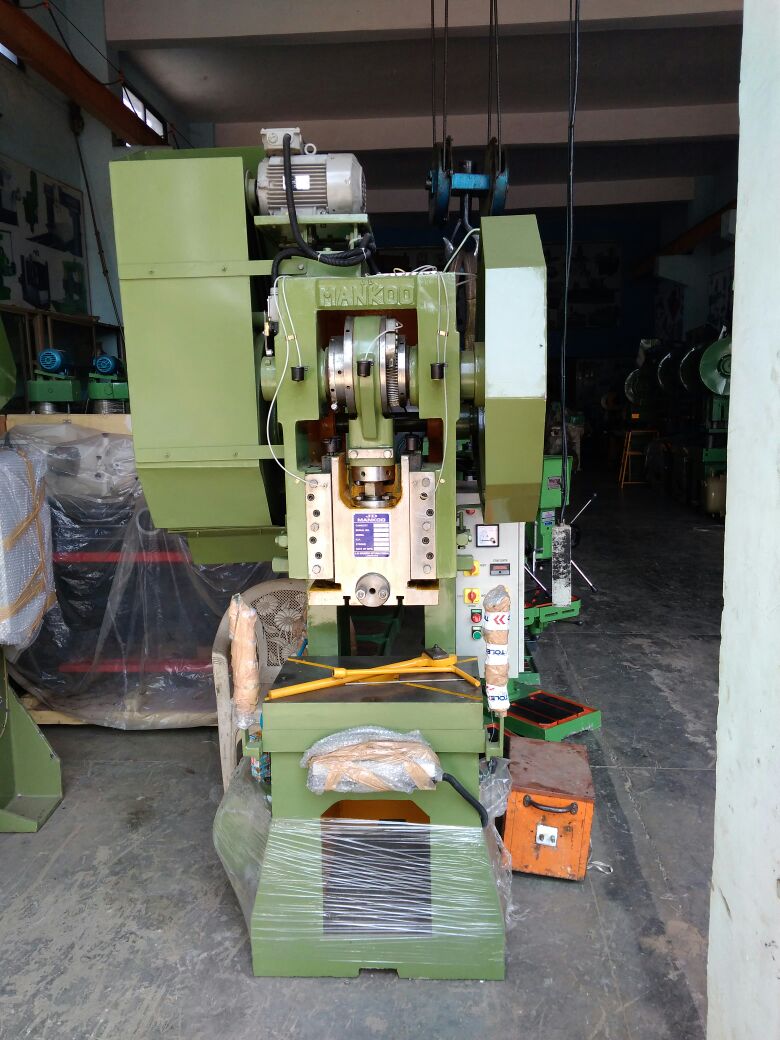

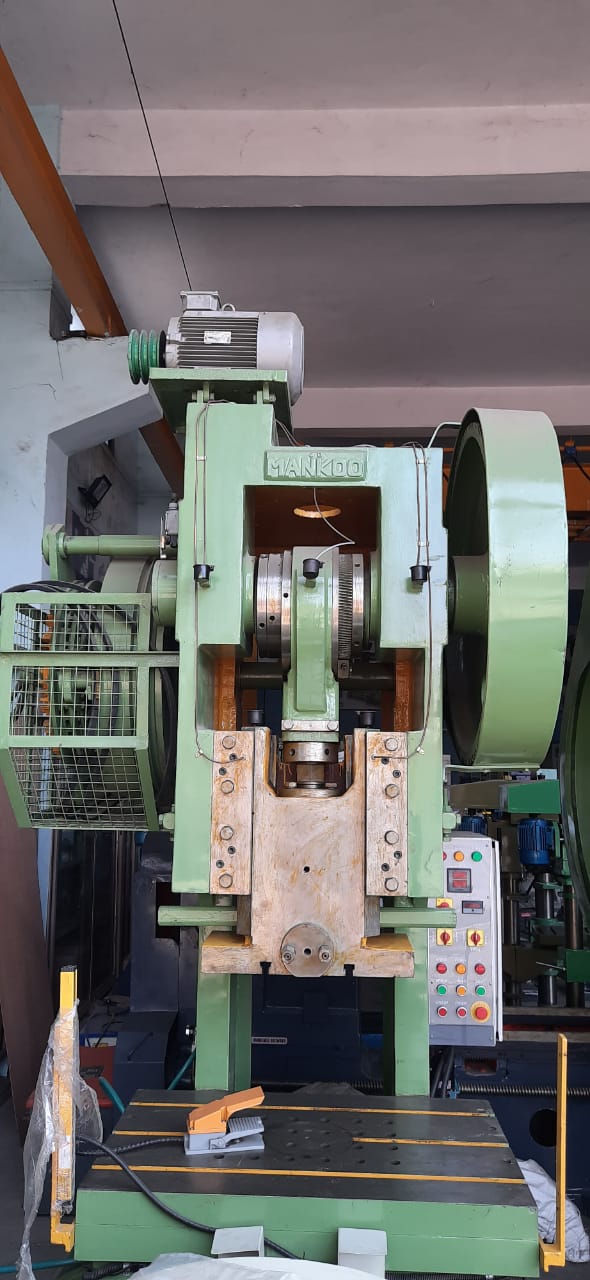

C Type Pneumatic Power Press Machine

Pneumatic Press Machine
Pneumatic Press Machine

Pneumatic PressMachinebrand mechanical Power Presses are coming in both C frame and Pillar typeversions from 3 tons to 250 tons capacity in most economical type ofconstruction with several standard/optional features such as manual/autolubrication systems; knockouts electronics hand safety; single/double orun-geared versions as also pneumatic feeders/ straightness and de-coilers forautomation Purpose

Steel body fixed, Inclinable type power press

Frame:The frame is of all steel construction, fabricated from Rolled steelplates with suitable cross ribbings. Presses upto 400T will be supplied withC.I. legs. proper alignment of the frame is ensured by machining.


Clutch: The clutch is of pin/rolling key-type. The clutch is rigid and wellsupported. The clutch gives continuous strokes for mass production.

Crank Shaft:Crankshaft is made of special alloy steel machined to close accuracy andfitted in bronze bushes for smooth working, longer life & accuracy

Flywheel:Properly sized fly wheel, is made of high grade cast iron, for storingand releasing adequate energy for the pressing operations, and properlybalanced for smooth running.

Gears:Gears are of steel cast or fabricated. Gear teeth are generated byprecision hobbing machine

Table & Ram:Table and ram are made of high grade heavy duty cast iron &     properly seasoned. They are perfectlyaligned, to each other to obtain high accuracy & precision press operation.

Lubrication:An efficient shot lubrication system has been provided for lubricatingthe sliding surfaces and moving parts. The lubricant is applied by hand pump

Mechanism:Inclinable type presses are provided with inclining mechanism which canbe easily set and locked in Position by spanners within minutes. The press is so designed that evenin maximum inclined position, it is stable under heavy pressing load.

STANDARD EQUIPMENT

·       Pneumaticdry clutch

·      “Crompton/ Siemens” Make Electric Motor

·      ElectricControl Panel and Pneumatic Control Panel

·      InchingStroke, Single Stroke & Auto Stroke

·      EmergencySwitch

·      FrontTwo Both Hand Operating Panel

·      FootSwitch

·      ProductionCounter

·      MotorizedGrease Lubrication Pump

  ExtraAir Outlet


OPTIONAL EQUIPMENT

·      VariableStroke

·      PneumaticDie Cushion

·      PhotoSafety Curtain

·      VariableSpeed

·      Anti-vibrationmounts

  ExtraBase Plate

                                                HI-TECH
TECHNICAL SPECIFICATION:

Description

10 Ton

20 Ton

30 Ton

50 Ton

Crankshaft Diameter

57

70

83

102

Adjustment of stroke

6-60

11-75

13-83

102

Adjustment in Ram

25

32

50

50

Hole in Bed

75

89

102

114

Length and Width of Bed

270 x 400

305 x 508

365 x 610

430 x 690

Thickness of Bed

50

63

75

75

Stroke per Minute

60

50

45

35

Motor Power (HP)

1.5

2

3

5

Weight Approx.

700

1300

1600

2650

Distance Between Bed to Ram

228

300

355

400

Punch Hole in Ram

25.4

31.75

38.1

50.8


                                                              JD MANKOO
SPECIFICATIONSFOR
JDMANKOO

Specifications

30

50

75

100

150

200

Crank Shaft Dia

102

110

140

153

178

190

Stroke

76

100

112

125

150

175

Bed to Ram Distance

325

432

482

600

650

700

Bed Width

382

530

610

675

760

800

Bed Length

560

752

782

1020

1100

1200

Fly Wheel Dia

660

830

910

890

1210

1250

Gear Dia

561

660

780

865

1010

1050

Motor HP (RPM required )

3/1440

5/1440

7.5/1440

10/1440

15/1440

20/1440

No. of Stroke Per Minute

50

40

40

40

30

27

Approx Weight

2000

2800

4000

5500

7000

9000
