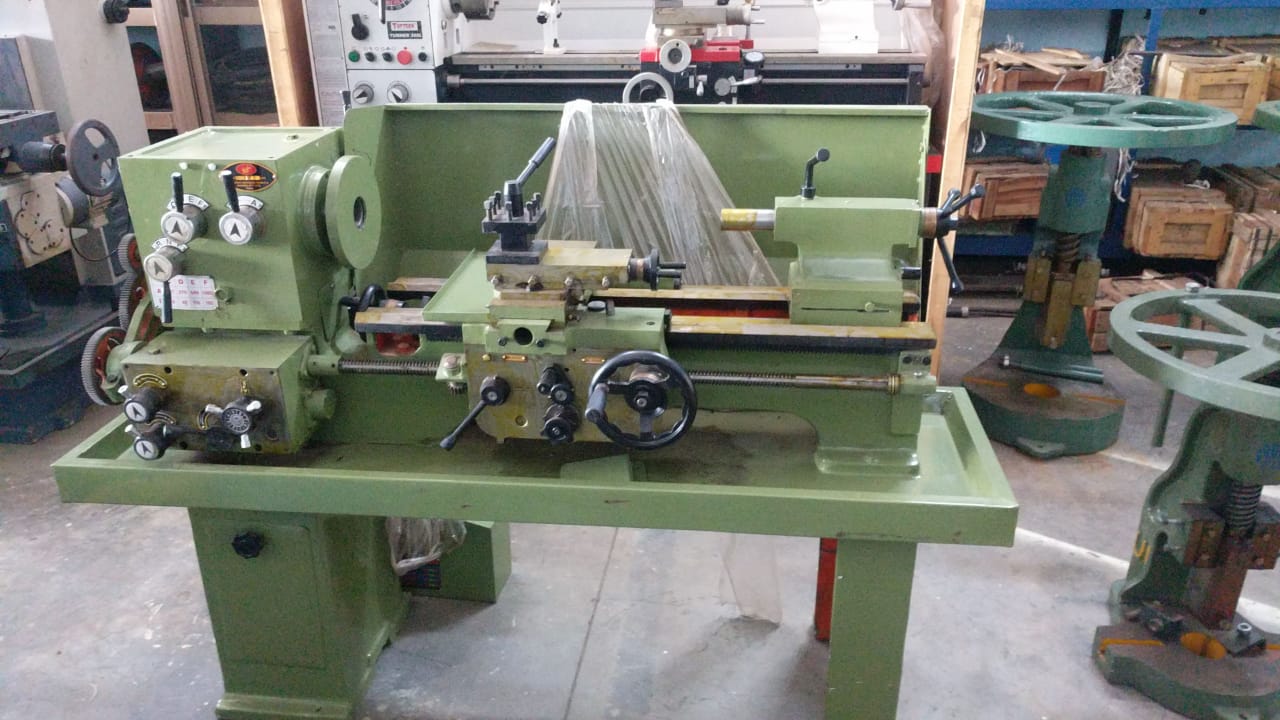

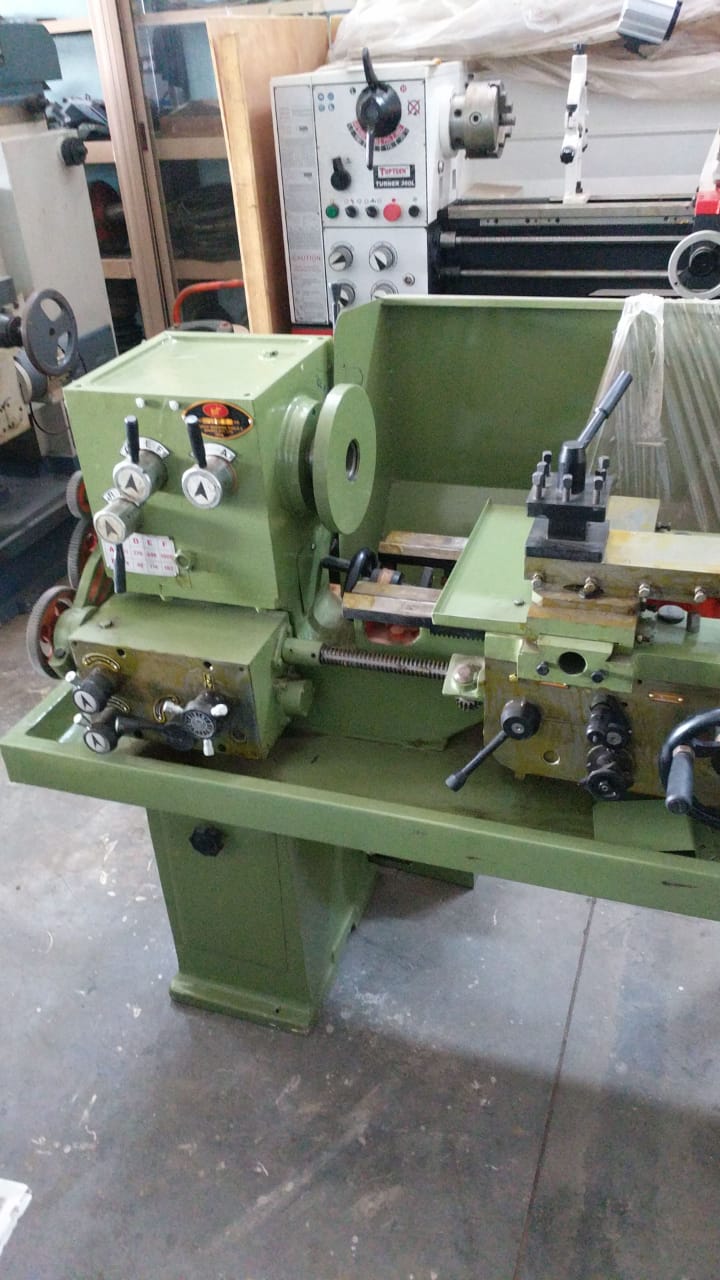

All Geared Lathe Machine

TMT All Geared LatheMachine

We offer a wide range of lathemachines after understanding your requirement

 based on the following parameters

Length ofBed

Length of Bed means how much distance betweencentre is your requirement



Centre Height

Centre height of the machine means how much maximumis O.D. of your job. Swing over bed and swing over cross slide should beselected as per your job.



Spindle Bore

Spindle bore should be with such dimensions thatyour job O.D. may pass through it easily if it is necessary



Widthof Bed

More Width of bed gives more rigidity andsturdiness to the machine



Drive

In belt driven there are twooptions, flat belt and V-belt driven. V-Belt Driven Lathe Machine is sturdydesign to remove any slipping actions that might take place. And in Gears drive(Geared Head Lathe Machine) it gives more power to turn as well as it is suitfor more speed and feed and resultant it increases productivity and lowelectricity consumption

TECHNICAL SPECIFICATION FOR LIGHT DUTY LATHE MACHINE :

DESCRIPTION

TMT LD NO.1

TMT LD NO.2

TMT LD NO.3

Length of Bed

1370 mm (4’6”)

1600 mm (5’3”)

1830 mm (6’)

Max. A.B. Center

685 mm (27”)

915 mm (36”)

1145 mm (45”)

Max. Swing Over Bed

305 mm (12”)

305 mm (12”)

305 mm (12”)

Max. Swing Without Gap

495 mm (19”)

495 mm (19”)

495 mm (19”)

Max. Swing Over Cross Slide

178 mm (7”)

178 mm (7”)

178 mm (7”)

Height of center over flate bed

ways

165 mm (6.1/2”)

165 mm (6.1/2”)

165 mm (6.1/2”)

Width of Bed

240 mm (9.1/2”)

240 mm (9.1/2”)

240 mm (9.1/2”)

Spindle Hole

40 mm (1.9/16”)

40 mm (1.9/16”)

40 mm (1.9/16”)

No. of spindle speeds

6 (40 to1200 rpm)

6 (35 to1200 rpm)

6 (35 to1200 rpm)

Lead Screw Dia. & Pitch

25 mm (1”x 4”

TPI)

25 mm (1”x 4”

TPI)

25 mm ((1”x4”

TPI)

Taper of Center in Head & T.S.

MT. -3.

MT. -3.

MT. -3.

No. of Metric Threads and Range

(1 to 6 mm Pitch)

13

(1 to 6 mm Pitch)

13

(1 to 6 mm Pitch)

13

No. of Inch Threads and Range

(2 to 24 TPI) 19

(2 to 24 TPI) 19

(2 to 24 TPI) 19

Power of AC Motor 3 P.H. (1440

rpm)

1 H.P.

1 H.P.

1 H.P.

Approx. Weight in kg

460 KG.

510 KG.

540 KG.




TECHNICAL SPECIFICATION FOR MEDIUM DUTY LATHE :-

DESCRIPTION

TMT MD NO.1

TMT MD NO.2

TMT MD NO.3

Length of Bed

1370 mm (4’6”)

1525 mm (5’00”)

1830 mm (6’00”)

Max. A.B. Center

508 mm (20”)

660 mm (26”)

965 mm (38”)

Max. Swing Over Bed

381 mm (15”)

381 mm (15”)

381 mm (15”)

Max. Swing Without Gap

610 mm (24”)

610 mm (24”)

610 mm (24”)

Max. Swing Over Cross Slide

203 mm (8”)

203 mm (8”)

203 mm (8”)

Height of center over flate bed ways

215 mm (8.1/2”)

215 mm (8.1/2”)

215 mm (8.1/2”)

Width of Bed

280 mm (11”)

280 mm (11”)

280 mm (11”)

Width of Gap in front of Face Plate

127 mm (5”)

127 mm (5”)

127 mm (5”)

Spindle Hole

54 mm (2.1/8”)

54 mm (2.1/8”)

54 mm (2.1/8”)

No. of spindle speeds & Range

8 (40 to1200 rpm)

8 (40 to1200 rpm)

8 (40 to1200 rpm)

Lead Screw Dia. & Pitch

32 mm (1.1/4”)

 4 TPI

32 mm (1.1/4”)

 4 TPI

32 mm (1.1/4”)

 4 TPI

Taper of Center in Head & T.S.

MT. -4.

MT. -4.

MT. -4.

No. of Metric Threads and Range

(1 to 6 mm Pitch) 13

(1 to 6 mm Pitch) 13

(1 to 6 mm Pitch) 13

No. of Inch Threads and Range

(2 to 24 TPI) 19

(2 to 24 TPI) 19

(2 to 24 TPI) 19

V-Belt Drive

Double V-belt “B”





Power of AC Motor 3 P.H. (1440 rpm)

2 H.P.

2 H.P.

2 H.P.

Approx. Weight in kg

700 KG.

750 KG.

800 KG.

TECHNICAL SPECIFICATION FOR HEAVY DUTY LATHE MACHINE :-

DESCRIPTION

TMT HD NO.1

TMT HD NO.2

TMT HD NO.3

Length of Bed

1675 mm (5’6”)

2135 mm (7”)

2745 mm (9’)

Max. A.B. Center

508 mm (20”)

965 mm (38”)

1575 mm (62”)

Max. Swing Over Bed

455 mm (18”)

455 mm (18”)

455 mm (18”)

Max. Swing Without Gap

760 mm (30”)

760 mm (30”)

760 mm (30”)

Max. Swing Over Cross Slide

280 mm (11”)

280 mm (11”)

280 mm (11”)

Height of center over flate bed ways

254 mm (10”)

254 mm (10”)

254 mm (10”)

Width of Bed

324 mm (12.3/4”)

324 mm (12.3/4”)

324 mm (12.3/4”)

Width of Gap in front of Face Plate

178 mm (7”)

178 mm (7”)

178 mm (7”)

Spindle Hole

54 mm (2.1/8”)

54 mm (2.1/8”)

54 mm (2.1/8”)

No. of spindle speeds

9 (30 to1060 rpm)

9(30 to1060 rpm)

9(30 to1060 rpm)

Lead Screw Dia. & Pitch

38 mm (1.1/2”)4TPI

38 mm (1.1/2”)4TPI

38 mm (1.1/2”)4TPI

Taper of Center in Head & T.S.

MT. -4.

MT. -4.

MT. -4.

No. of Metric Threads and Range

(1 to 6 mm Pitch) 13

(1 to 6 mm Pitch) 13

(1 to 6 mm Pitch) 13

No. of Inch Threads and Range

(2 to 24 TPI) 19

(2 to 24 TPI) 19

(2 to 24 TPI) 19

Power of AC Motor 3 P.H. (1440 rpm)

3 HP.

3 HP.

3 HP.

Approx. Weight in kg

1300 KG.

1500 KG.

1600 KG.

DESCRIPTION

TMT HD NO.4

TMT HD NO.5

Length of Bed

3045 mm (10”)

3660 mm (12”)

Max. A.B. Center

1880 mm (74”)

2490 mm (98”)

Max. Swing Over Bed

455 mm (18”)

455 mm (18”)

Max. Swing Without Gap

760 mm (30”)

760 mm (30”)

Max. Swing Over Cross Slide

280 mm (11”)

280 mm (11”)

Height of center over flate bed ways

254 mm (10”)

254 mm (10”)

Width of Bed

324 mm (12.3/4”)

324 mm (12.3/4”)

Width of Gap in front of Face Plate

178 mm (7”)

178 mm (7”)

Spindle Hole

54 mm (2.1/8”)

54 mm (2.1/8”)

No. of spindle speeds

9 (30 to1060 rpm)

9 (30 to1060 rpm)

Lead Screw Dia. & Pitch

38 mm (1.1/2”)  4TPI

38 mm (1.1/2”)4TPI

Taper of Center in Head & T.S.

MT. -4.

MT. -4.

No. of Metric Threads and Range

(1 to 6 mm Pitch) 13

(1 to 6 mm Pitch) 13

No. of Inch Threads and Range

(2 to 24 TPI) 19

(2 to 24 TPI) 19

Power of AC Motor 3 P.H. (1440 rpm)

3 HP.

3 HP.

Approx. Weight in kg

1800 KG.

2000 KG.
