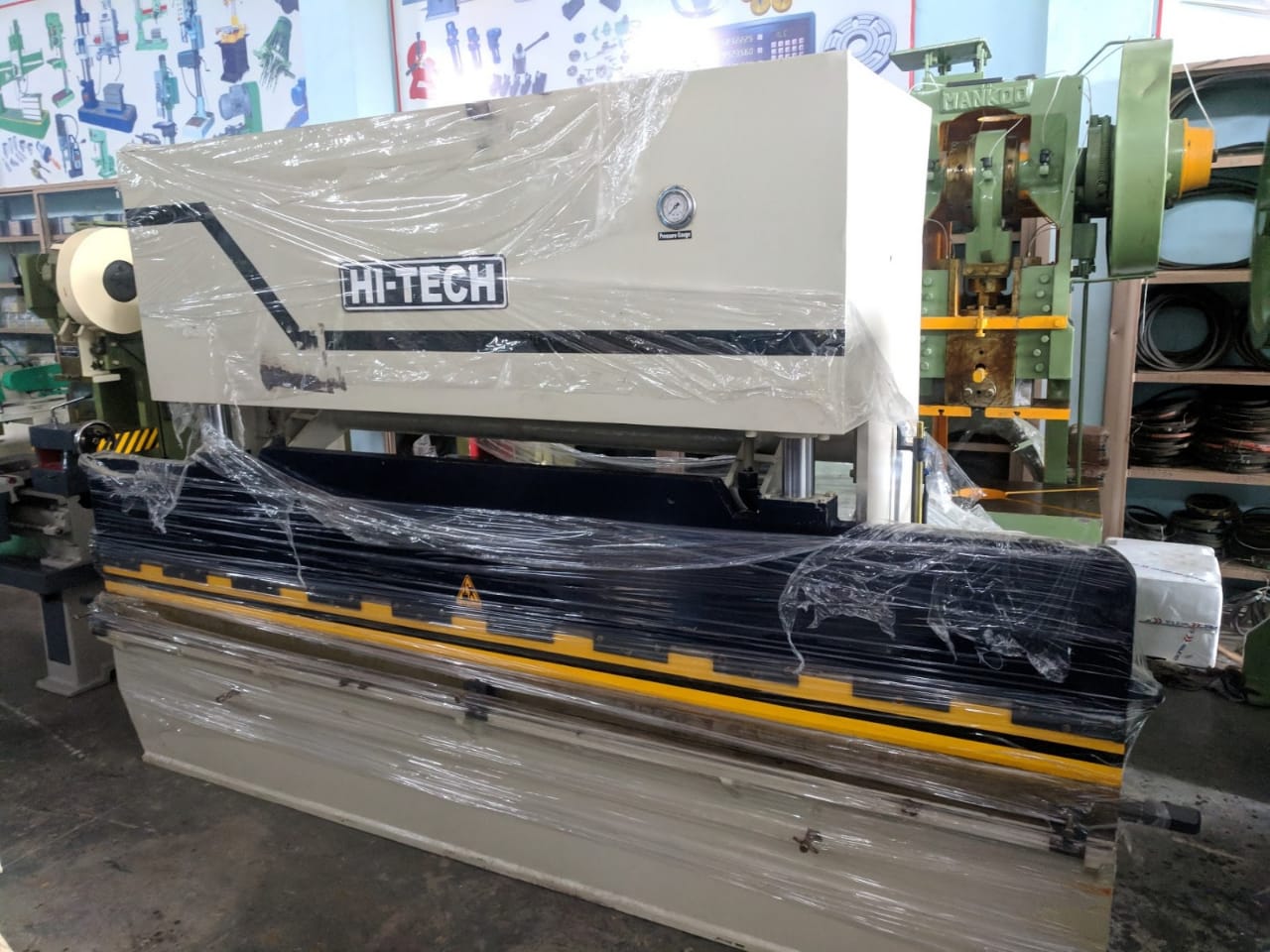

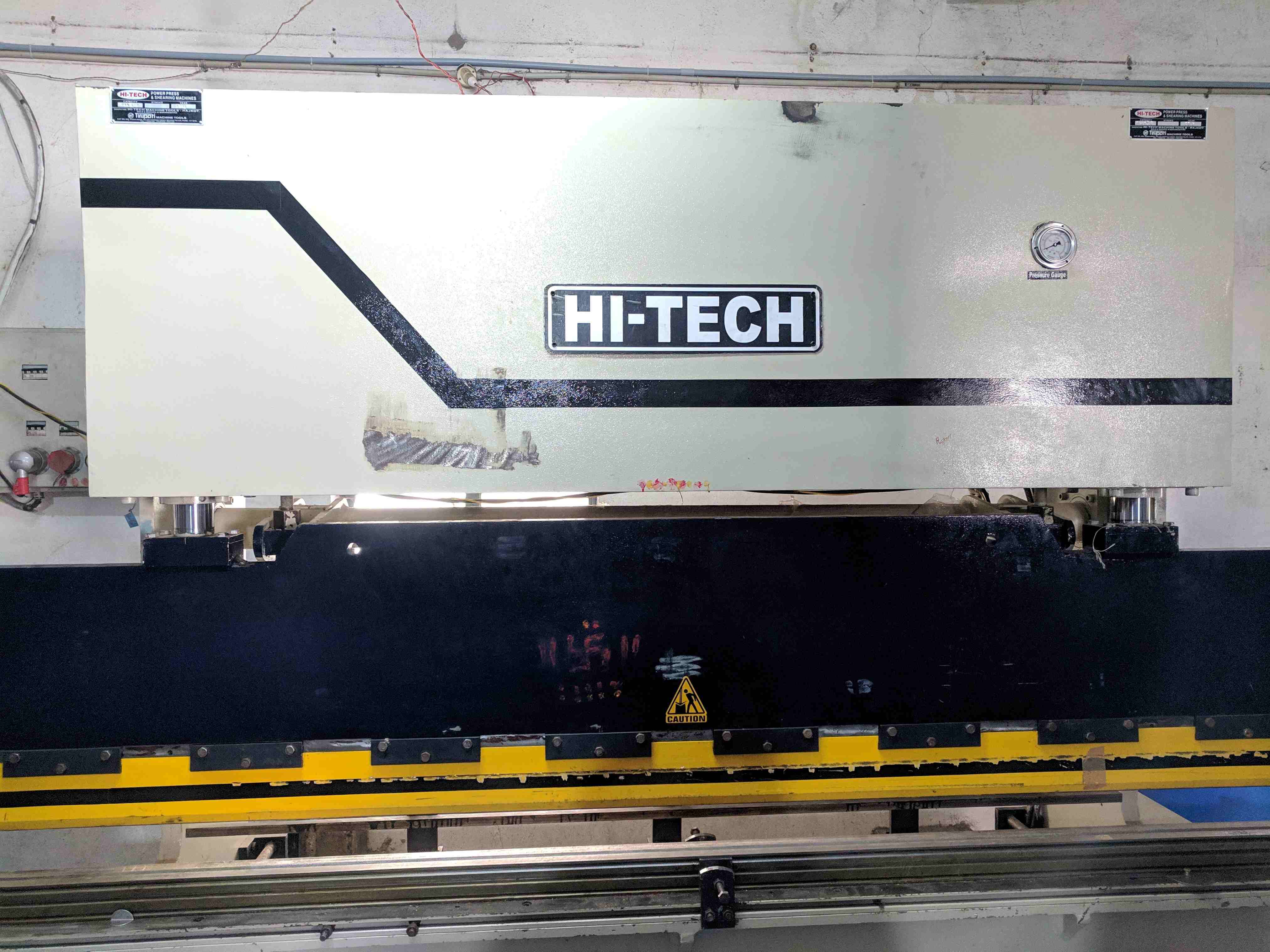

Front Cylinder Hydraulic Press Brake

HI-TECH

Hi-tech Press Brake Specifications :-

Press Brakes are designed and developed through years of experience in Sheet Metal working machines. Hi-tech Press Brakes are widely accepted in industries for continuous production runs and in areas requiring and repeatability coupled with high production.
FRAME:
Frame is of robust steel construction of rigid and interlocked design. It is strain-free and supports the Ram and Bed against undesired deflection under permissible load condition.
RAM AND BED:
Made from Steel Plates of suitable thickness. Machines for straightness and parallelism of the working surface. Ram is guided and supported throughout the stroke by accurately machines guideways.
DRIVE SYSTEM:
Power is transmitted to the Ram through two individual Gear drives for uniform load distribution throughout the length. This also reduces the torsional stresses on the eccentric shaft electric motor used is of sufficient H.P. Which reduces slowdown of flywheel and increases energy available per stroke. The Gear and pinion are made out of carbon / alloy steel.
RAM ADJUSTMENT:
Motorised Ram Adjustment through a simple drive mechanism facilitates quick bending angle adjustment is made simple by incorporating a spring-loaded dog clutch.
CLUTCH AND BRAKE:
All series of Press are provided with high torque how-inertia Friction Clutch,synchronised with heavy duty mechanical Brake ensuring immediate braking of Ramon releasing the Pedal. Clutch operating levers are designed in such a way that minimum, engaging force is required of the pedal.

STANDARD ACCESSORIES:
Foot Pedal and Die Block Lifting Link, Fly Wheel & Gear Guard, Self-Lubrication System, Motor Pulley, Standard “V” Block and Punch, Motor Mounting Bracket.

OPTIONAL ACCESSORIES:
Motorized Back Gauge, Automatic Lubrication System, V-Belts, Electric Motor& Starter/Control Panel Board, Stroke Counter, Various type of Die &Punch, Foundation Bolts

 TECHNICAL SPECIFICATIONS

TONN
AGE.

CLEAR
DIST.
BETWEEN
HOUS
INGS

BENDING
CAP. IN MS
LENGTH X
THICKNESS

MAIN
MOTOR
HP/KW

RAM
ADJ.
ELE.
MOTOR
HP/KW

STR
OKE
PER
MINU.

STROKE
OF
RAM
M.M.

RAM
ADJ.
M.M.

SHUT
HEIGHT
RAM
STROKE

DEPTH
OF
THROAT
M.M.

OVERALL DIMENSION IN MM (APP.)

LENGTH
A

BREADTH
B

HEIGHT
C

20

1000

1525 x 1.6

3 / 2.2

MANUAL

30

50

40

200

200

1900

1100

2300

30

1220

2030 x 2

5 / 3.7

05/

30

60

40

200

200

2400

1100

2300

30

1700

2540 x 1.6

5 / 3.7

1 / .75

30

60

40

200

200

2900

1100

2300

40

1000

1525 x 3

7.5 / 5.6

05/

30

60

40

200

200

1900

1200

2300

40

1700

1540 x 2

7.5 / 5.6

1 / .75

30

60

40

200

200

2900

1200

2300

60

1220

2030 x 4

7.5 / 5.6

1 / .75

30

60

50

225

225

2400

1200

2500

60

1700

2540 x 3

7.5 / 5.6

1 / .75

30

60

50

225

225

2900

1200

2500

80

1220

2030 x 5

10 / 7.7

1 / .75

25

75

75

250

250

2400

1500

2800

80

1700

2540 x 4

10 / 7.7

1 / .75

25

75

75

250

250

2900

1500

2800

80

1900

3125 x 3

10 / 7.7

1 / .75

25

75

75

250

250

3500

1500

2800

100

1220

2030 x 6

12.5 / 9.7

1.5 / 1

25

75

75

250

250

2400

1800

3000

100

1700

2540 x 5

15 / 11.2

1.5 / 1

25

75

75

250

250

2900

1800

3000

100

1900

3125 x 4

15 / 11.2

1.5 / 1

25

75

75

250

250

3500

1800

3000

120

1220

2030 x 8

15 / 11.2

2 / 1.5

20

75

75

275

300

2500

1800

3400

120

1700

2540 x 6

15 / 11.2

2 / 1.5

20

75

75

275

300

3000

1800

3400

120

1900

3125 x 5

15 / 11.2

2 / 1.5

20

75

75

275

300

3700

1800

3400

160

1220

2030 x 10

20 / 15

2 / 1.5

20

75

90

300

300

2500

2000

3400

160

1700

2540 x 8

20 / 15

2 / 1.5

20

75

90

300

300

3100

2000

3400

160

1900

3125 x 6

20 / 15

2 / 1.5

20

75

90

300

300

3700

2000

3400

200

1220

2030 x 12

25 / 18.7

2 / 1.5

20

90

90

300

300

2500

2100

3600

200

1700

2540 x 10

25 / 18.7

2 / 1.5

20

90

90

300

300

3100

2100

3600

200

1900

3125 x 8

25 / 18.7

2 / 1.5

20

90

90

300

300

3700

2100

3600
