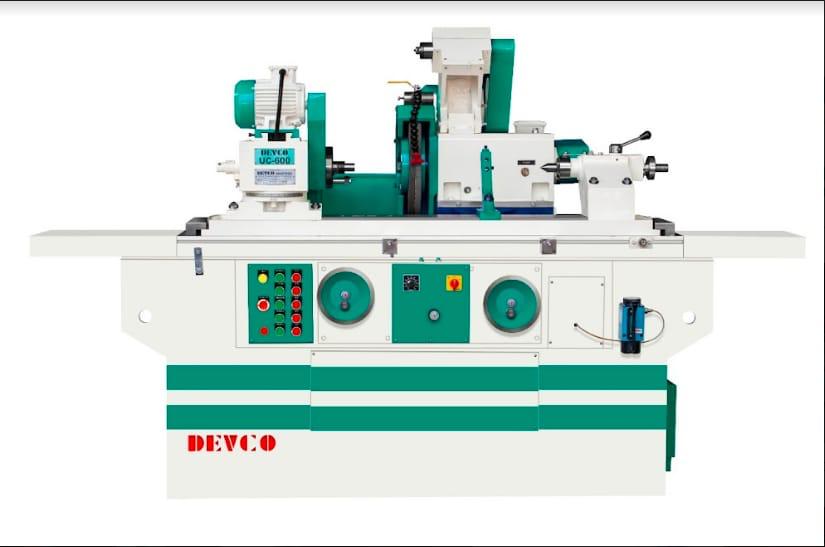

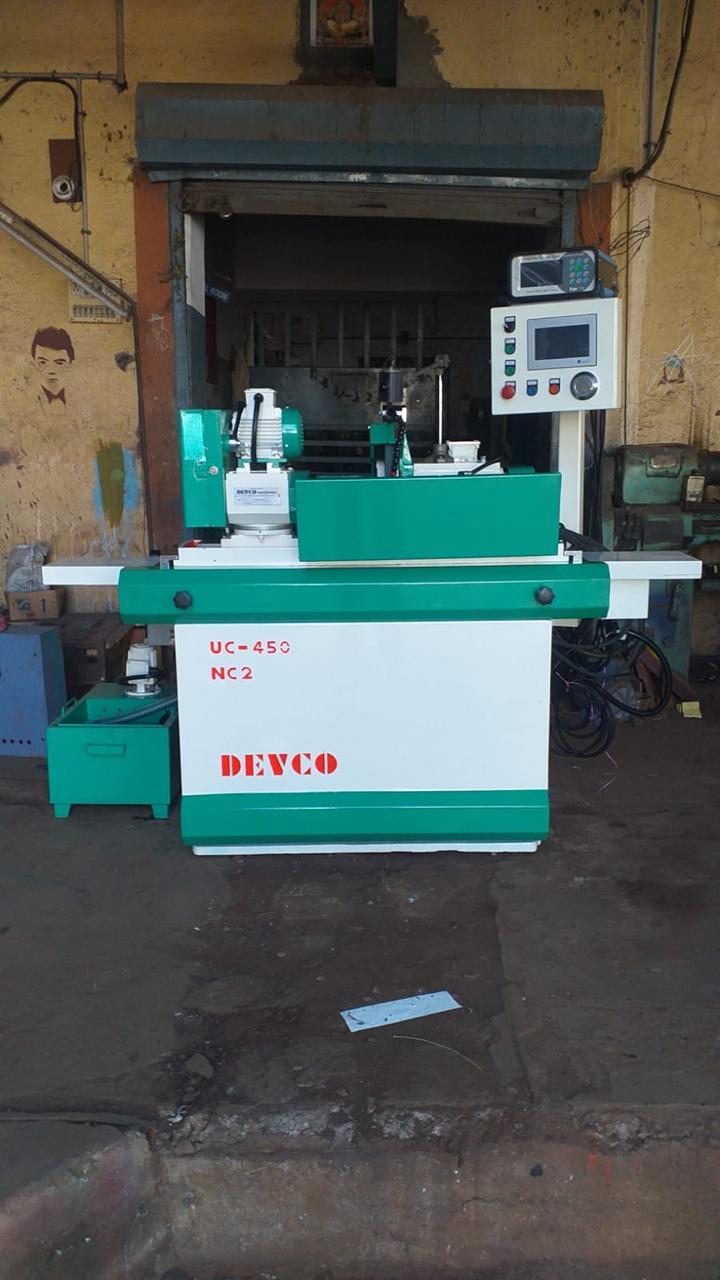

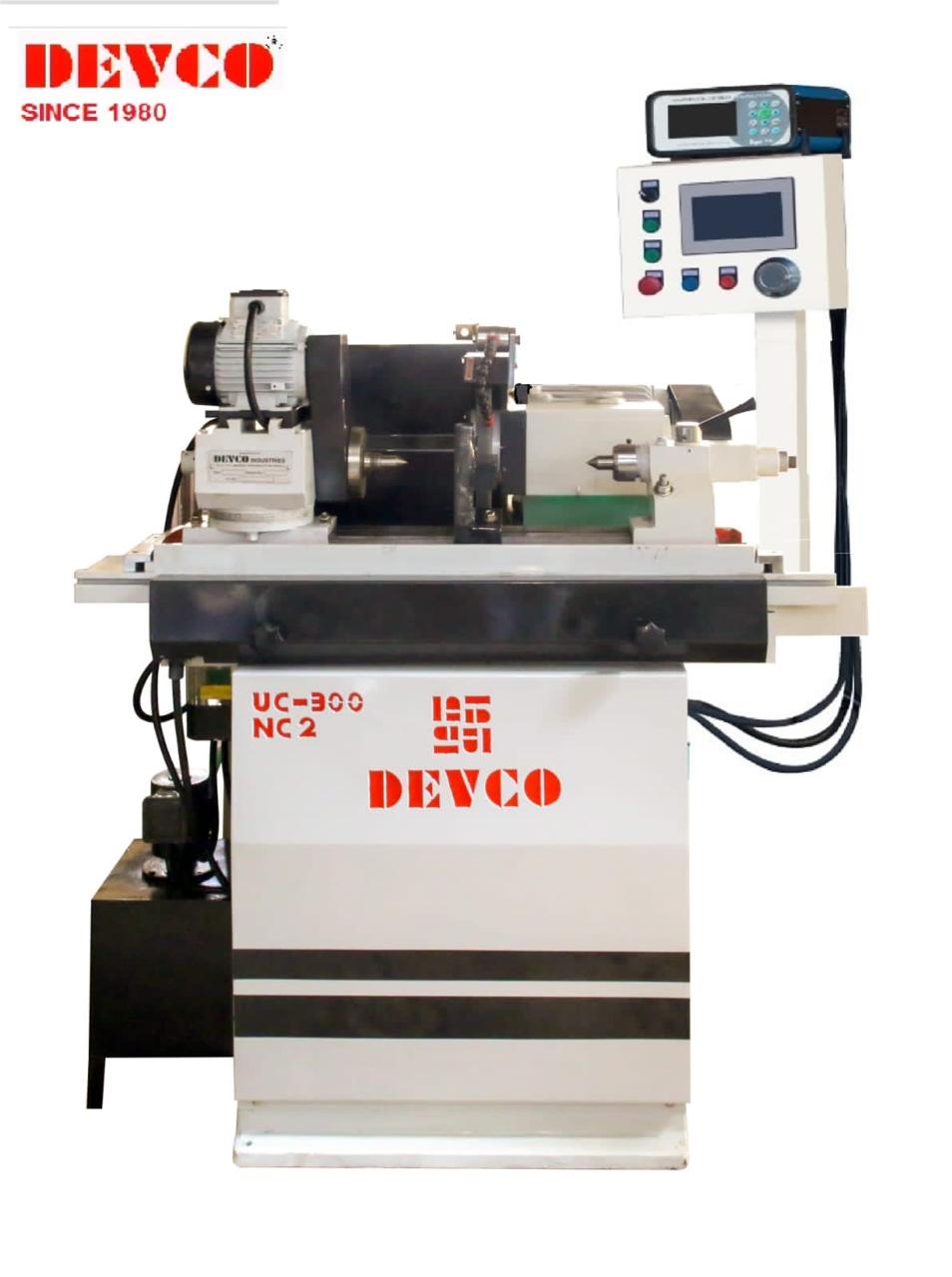

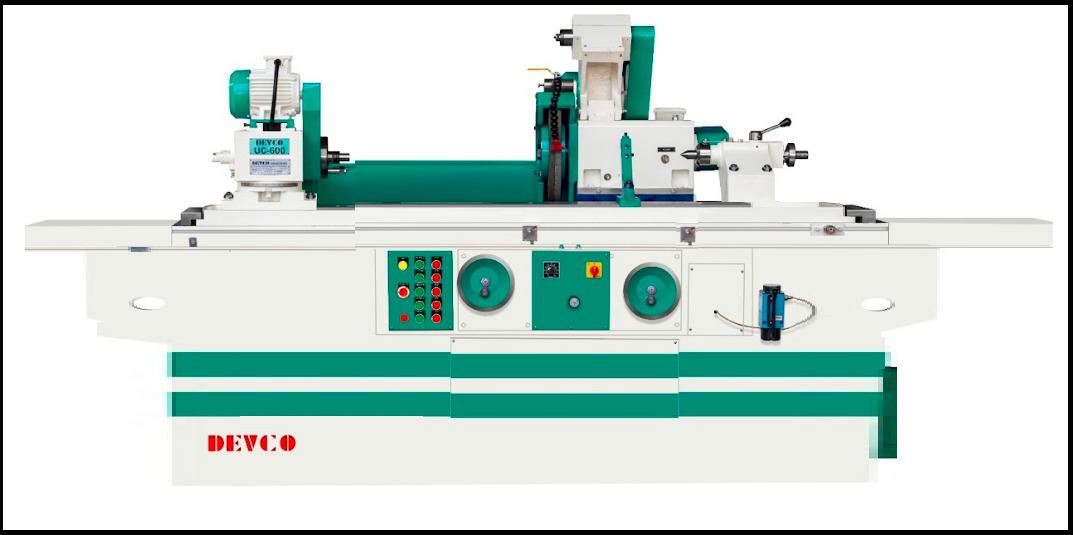

Cylindrical Surface Grinder

 Cylindrical SurfaceGrinder

TECHNICAL SPECIFICATION:-

                                 Specification

Unit



MODEL NO.



LU-150

LU-300

LU-450

Capacity

Distance between centre

mm

160

310

510

Height of centre

mm

102

102

130

Table

Swivelling Angle

deg.



±9 o



+10o                                                             +9o



-4 o

-3o

Table Speed Mech. 4 step

mm/min

-

140-260-370-700

Electric Motor required, 3phase

HP/rpm

0.5/OR 0.37 kW/1440

Hy speed infinitely variable

Met/min

-

-

0.1 to 2.5

Hy power pack electric motor,3 phase

Hp/rpm

-

-

1/ or 0.75 KW/1441

Wheel Head

Grinding wheel size DxWxB

mm

250x25x76.2

300x25x76.2

300x40x127

Grinding wheel speed

Rpm

2300

1900

1900

In feed of hand wheel per division

Mm

0.01

0.01

0.01

Electric motor required,3 phase

HP/rpm

1.5 /1400

2 / 1440

3/1440

Rapid approach

Mm

-

-

-

Work head

Spindle speed (3 rang)

rpm

90-210-360

90-180-360

90-180-360

Spindle in taper

M.T

3

3

3

Electric motor 3 phase

HP/rpm

0.5 / 1440

0.5/1440

0.5/1440

Tail Stock

Taper in quile

M.T

3

3

3

Max quill stroke

mm

25

25

25

Internal Grinding Attachment

Spindle size

Mm

200x60

200x60

200x60

Spindle speed

rpm

12000

12000

16000

Electric motor required 3phase

HP/rpm

0.5 /2800

0.5 / 2800

1/2800

Coolant Tank

Coolant Tank

Litre

35

35

50

Coolant pump 3 phase

HP

0.15

0.15

0.15

Total Weight

Machine Approx.

Kg

600

900

1400






                Specification

Unit

MODEL NO.

LU-500

LU-600

LU-800

LU-1000

LU-1250

LU-1510

Capacity

Distance between centre

mm

510

610

810

1010

1260

1510

Height of centre

mm

151

Table

Swivelling Angle

deg.

+7°

-3°

+7°

-5°

+7°

-4°

+6°

-4°

+5°

-3°

+5°

-3°

Table Speed Mech. 4 step

mm/min

140-260-370-700

Electric Motor required, 3phase

HP/rpm

0.5 / OR 0.3 KW /1440

Hy speed infinitely variable

Met/min

0.1 TO 2.5

Hy power pack electric motor,3 phase

Hp/rpm

1 / OR 0.75 KW. / 1441



Wheel Head

Grinding wheel size DxWxB

mm

350 x 40 x 127

Grinding wheel speed

Rpm

1700

In feed of hand wheel per division

Mm

0.01

Electric motor required,3 phase

HP/rpm

3 / 1440

Rapid approach

Mm

40 mm stock (FxR)



Work head

Spindle speed (3 rang)

rpm

65-140-205-300

Spindle in taper

M.T

4

Electric motor 3 phase

HP/rpm

1 / 1440



Tail Stock

Taper in quile

M.T

4

Max quill stroke

mm

40



Internal Grinding Attachment

Spindle size

Mm

250 x 60

Spindle speed

rpm

16000

Electric motor required 3phase

HP/rpm

1 / 2800



Coolant Tank

Coolant Tank

Litre

50

Coolant pump 3 phase

HP

0.15

Total Weight

Machine Approx.

Kg

1700

2100

2500

3000

3500

4000



Product Details :
