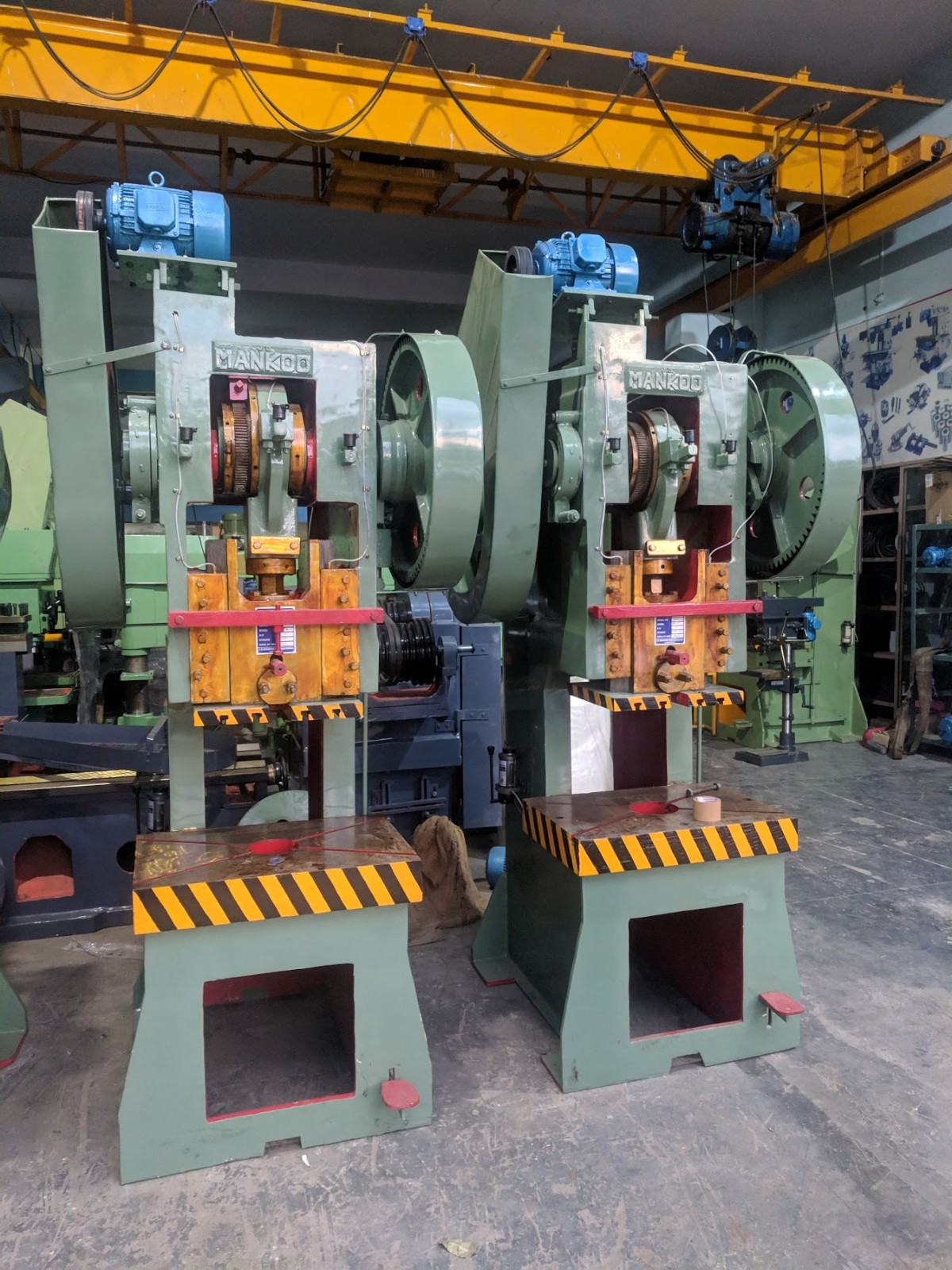

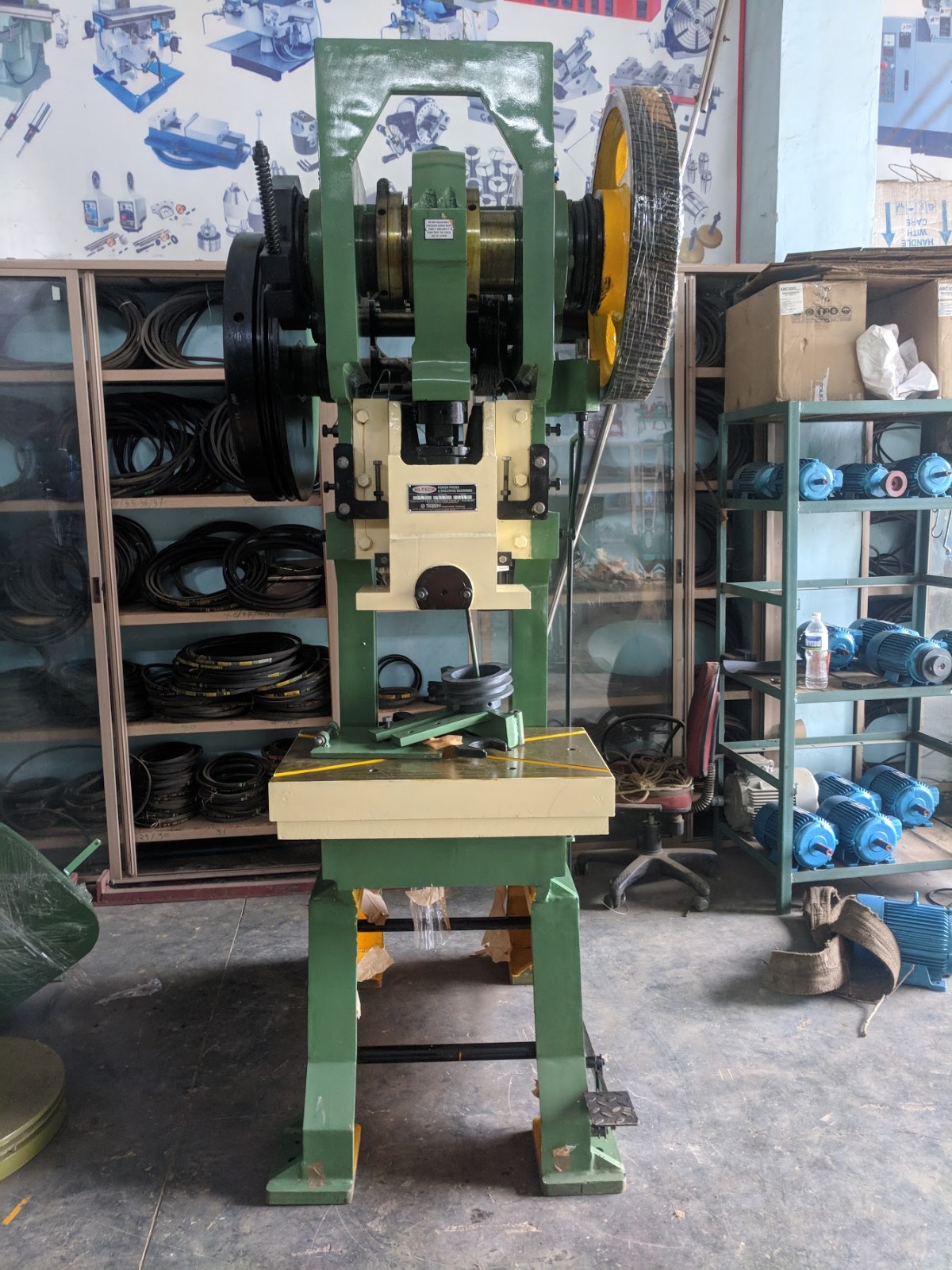

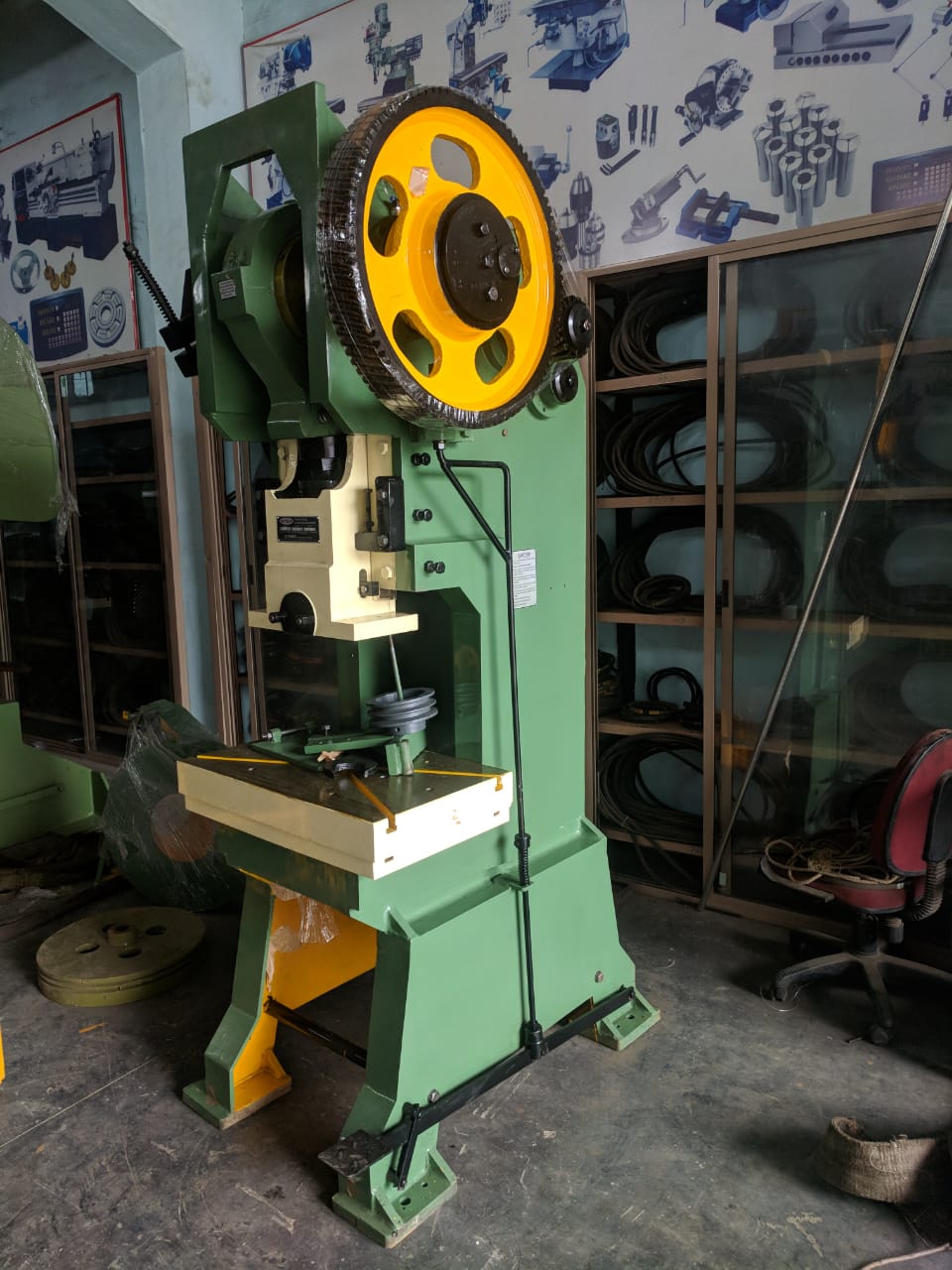

C Type Mechanical Power Press Machine


Mechanical Power Press C Type Power Press

Mechanical Power Press C Type brand mechanical Power Presses are coming in both C frame and Pillar type versions from 10 tons to 250 tons capacity in most economical type of construction with several standard/optional features such as manual/auto lubrication systems; knockouts electronics hand safety; single/double or un-geared versions as also pneumatic feeders/ straightness and de-coilers for automation Purpose

Steel body fixed, Inclinable type power press

Frame:The frame is of all steel construction, fabricated from Rolled steel plates with suitable cross ribbings. Presses upto 400T will be supplied with C.I. legs. proper alignment of the frame is ensured by machining

Clutch:The clutch is of pin/rolling key-type. The clutch is rigid and well supported. The clutch gives continuous strokes for mass production.

Crank Shaft:Crankshaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

Flywheel: Properly sized fly wheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running

Gears:Gears are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine

Table & Ram:Table and ram are made of high grade heavy duty cast iron &     properly seasoned. They are perfectly aligned, to each other to obtain high accuracy & precision press operation

Lubrication:An efficient shot lubrication system has been provided for lubricating the sliding surfaces and moving parts. The lubricant is applied by hand pump

Mechanism:Inclinable type presses are provided with inclining mechanism which can be easily set and locked inPosition by spanners within minutes. The press is so designed that even in maximum inclined position, it is stable under heavy pressing load



Standard Accessories

1.Motor pulley

2.Clutch key

3.Clutch key springs

4.Slide adj. spanner

5.Fly wheel & gear guard

6.Oil cups for lubrication point

7.Knock-out system

8.Inclination arrangement in 50 ton & above machine

Optional Accessories

1.Tow hand operated clutch

2.Single / continuous stroke

3.Lubrication pump automatic

4.Electrical

5.Tie – rod

6.Tommy bar

7.Extra base plate

8.Inclination arrangement



                     HI-TECH

TECHNICAL SPECIFICATION:



Description

10 Ton

20 Ton

30 Ton

50 Ton

Crankshaft Diameter

57

70

83

102

Adjustment of stroke

6-60

11-75

13-83

102

Adjustment in Ram

25

32

50

50

Hole in Bed

75

89

102

114

Length and Width of Bed

270 x 400

305 x 508

365 x 610

430 x 690

Thickness of Bed

50

63

75

75

Stroke per Minute

60

50

45

35

Motor Power (HP)

1.5

2

3

5

Weight Approx.

700

1300

1600

2650

Distance Between Bed to Ram

228

300

355

400

Punch Hole in Ram

25.4

31.75

38.1

50.8



JD MANKOO

SPECIFICATIONS FOR C FRAME POWER PRESS



Specifications

30

50

75

100

150

200

Crank Shaft Dia

102

110

140

153

178

190

Stroke

76

100

112

125

150

175

Bed to Ram Distance

325

432

482

600

650

700

Bed Width

382

530

610

675

760

800

Bed Length

560

752

782

1020

1100

1200

Fly Wheel Dia

660

830

910

890

1210

1250

Gear Dia

561

660

780

865

1010

1050

Motor HP (RPM required )

3/1440

5/1440

7.5/1440

10/1440

15/1440

20/1440

No. of Stroke Per Minute

50

40

40

40

30

27

Approx Weight

2000

2800

4000

5500

7000

9000
